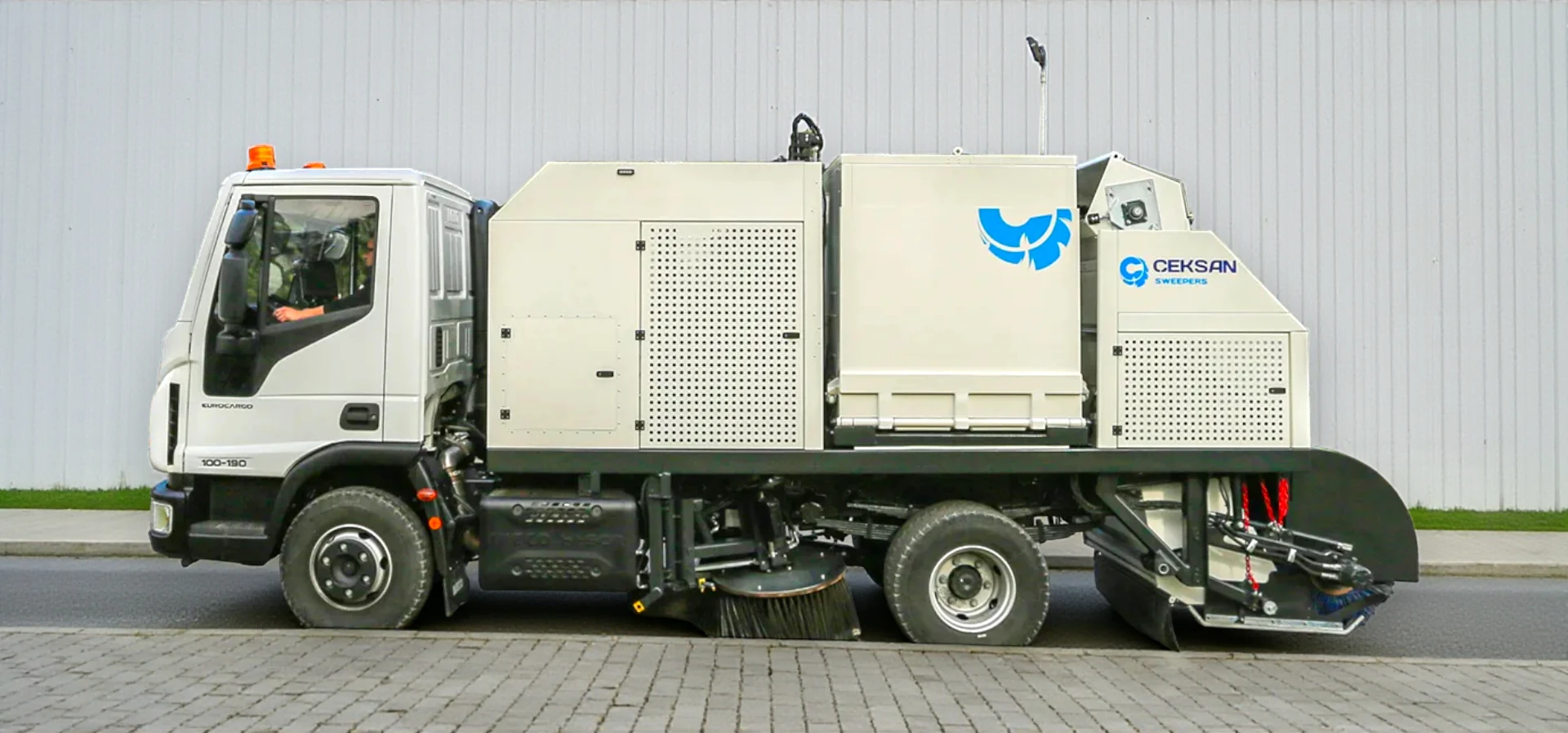

About CityEagle

CityEagle is ideal for use both in the city centers, and also in long distances.

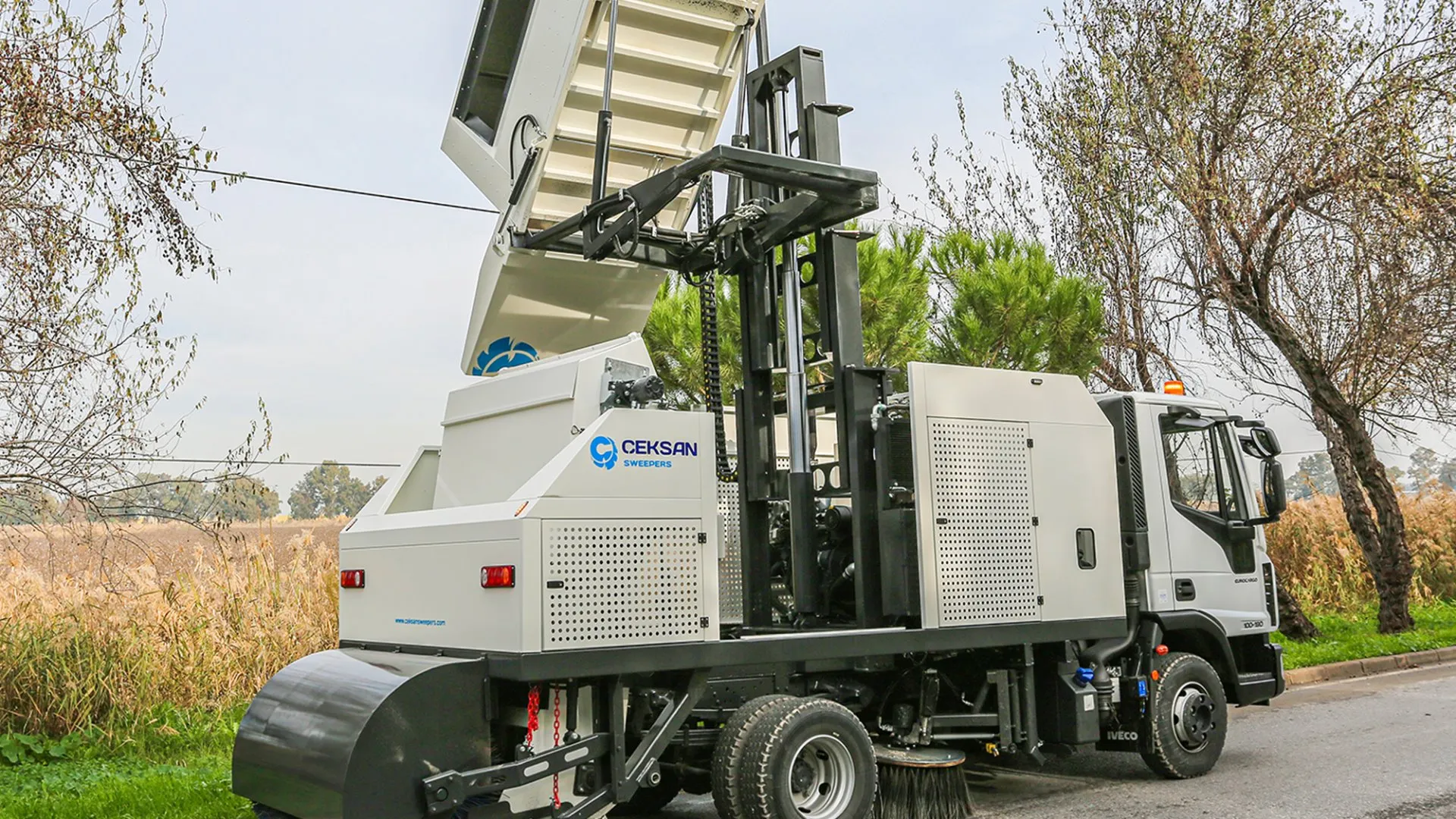

Materials collected by conveyor is directly loaded into the hopper of the machine.

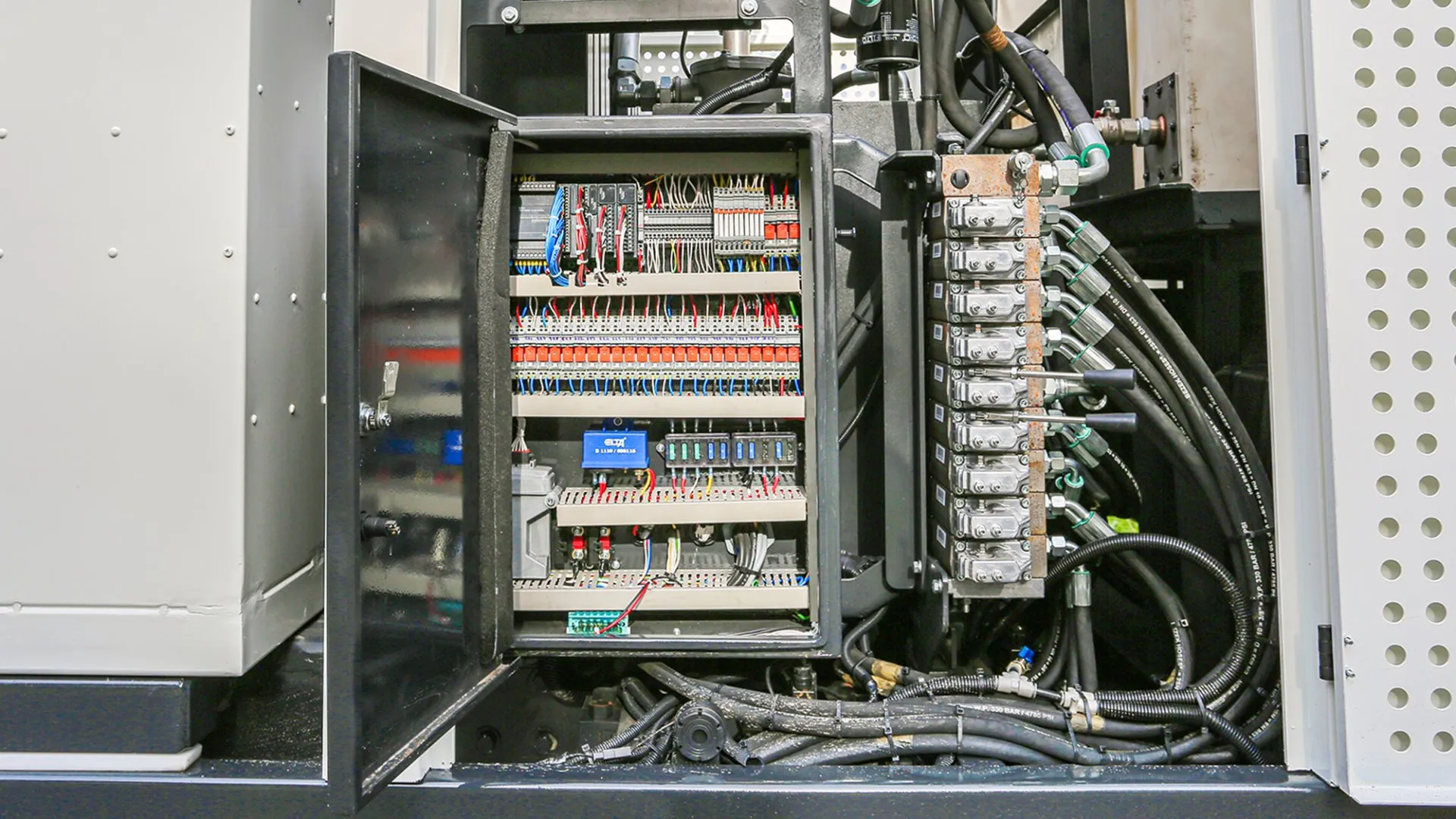

All critical controls are maintained in a purpose built locker on the one side of the machine.

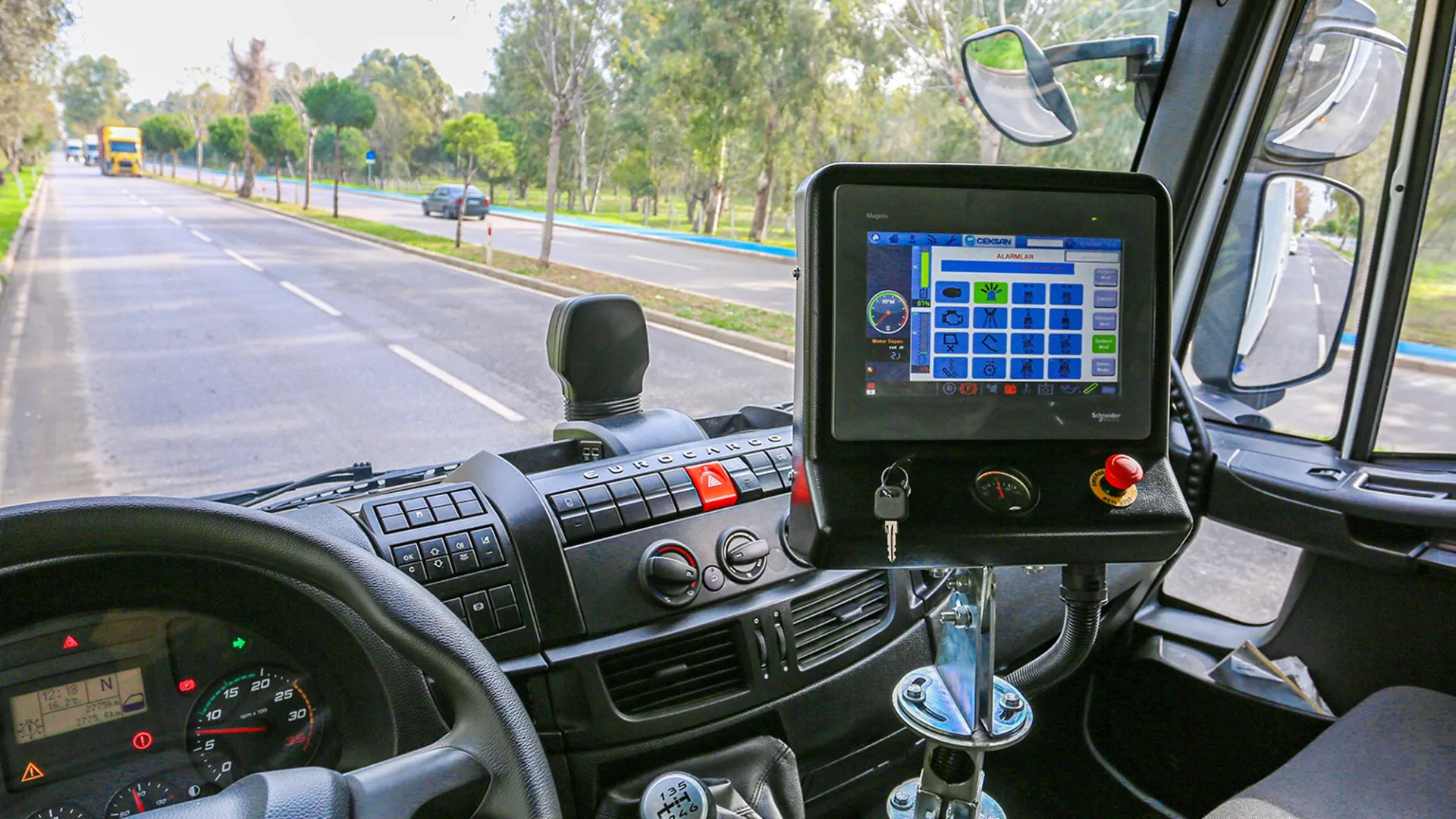

Ergonomic and user friendly control panel allows the driver to run all the functions of sweeping.
It loads coarse waste material quickly and directly from the road into its hopper and opeates on a mechanical basis without suction.

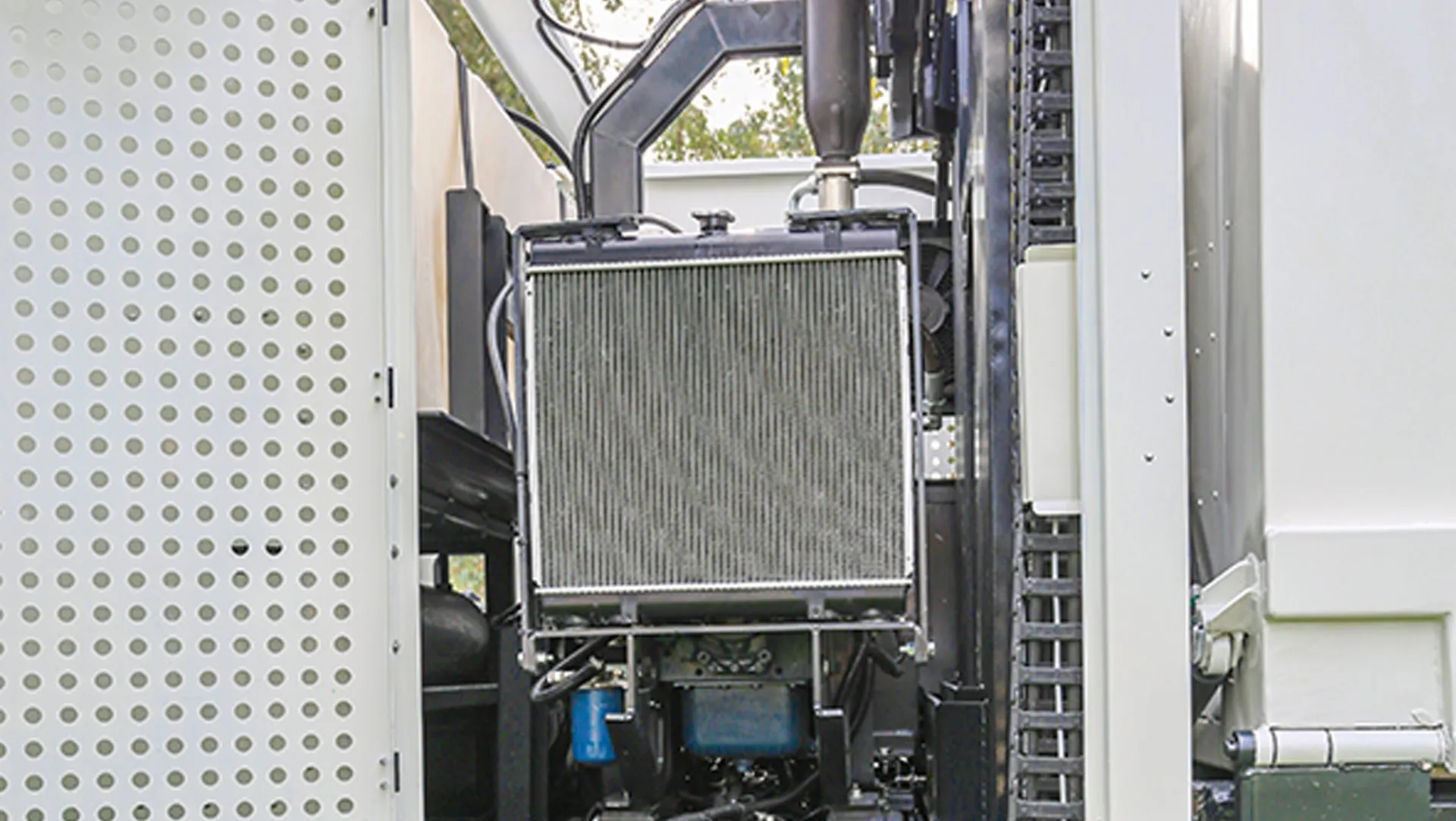

Kubota® brand motors which meet the highest expectancies for emissions and environmental impact are used in order to provide maximum power and reduced fuel consumption.
It is designed for heavy works and is capable of sweeping every kind of debris such as sands, waste generated as a result of heavy winter conditions, mass of household garbages, stones.

Photo Gallery

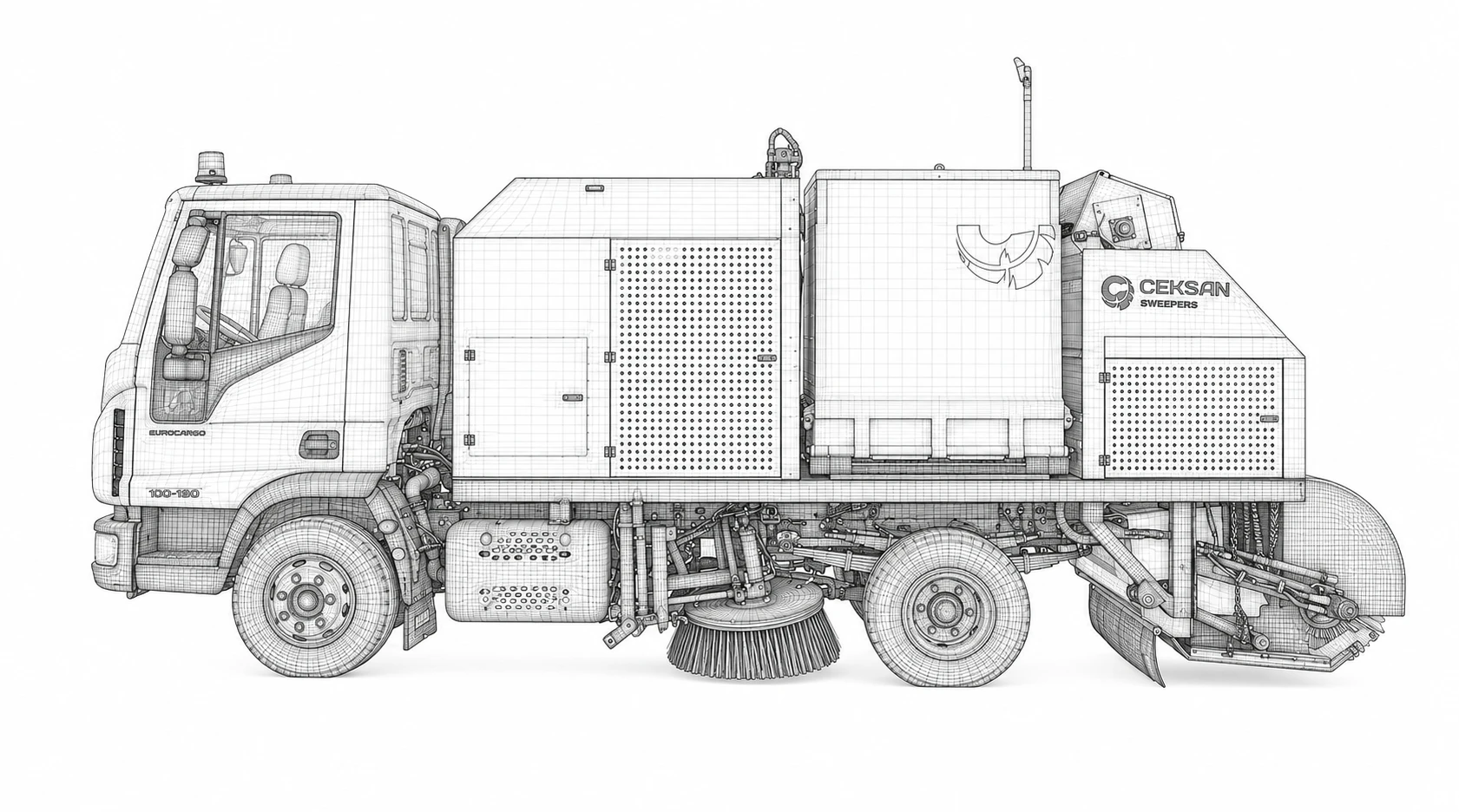

Design

Techonology

FeatureSpecification
Hopper Tank Capacity (m³)2+
Sweeping Speed (km/h)0-15
Sweeping Width (mm)2900
Sweeping Capacity (m²/h)43500
Water Tank Capacity (liter)360
Water Tank MaterialStainless Steel
Wheelbase (mm)1843
Machine Length (mm)4593
Machine Width (mm)1784
Machine Height (mm)2000
Empty Total Weight (kg)3300
Oil Tank Capacity (lt)60
Fuel Tank Capacity (lt)80
Filters (pc)4

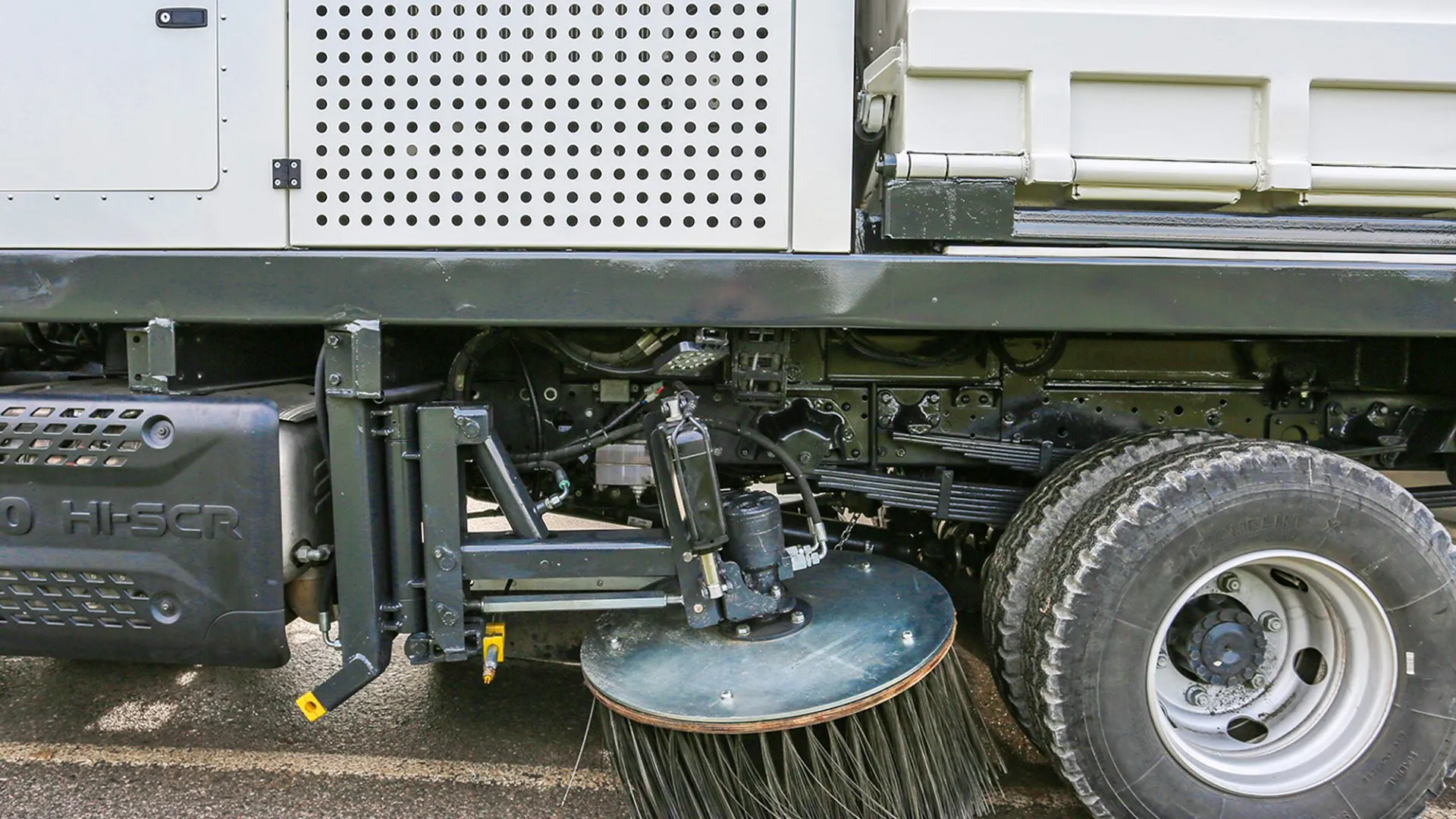

Brush Plate Diameter (mm)480
Length of Suction Nozzle (mm)800
Diameter of Suction Hose (mm)240
Water Pump (bar)4.2
Engine TypeDiesel
Engine Power (kw)72-75
Payload (kg)4500
Mesh Filter Surface Area (m²)0.84
SteeringBoth 2 and 4 Wheel
Max Speed (km/h)25

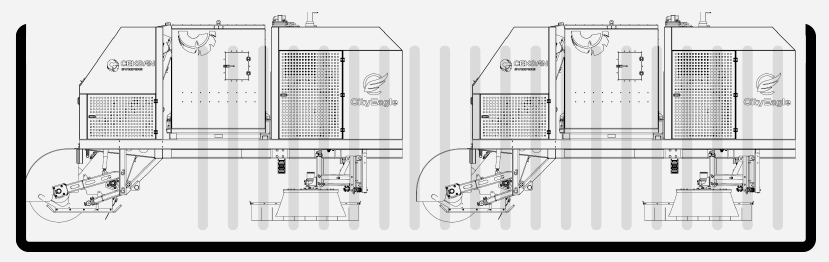

Logistics
CityEagle – 1 unit fits in a 40OT container
CityEagle – 2 units fit in a 40OT container
